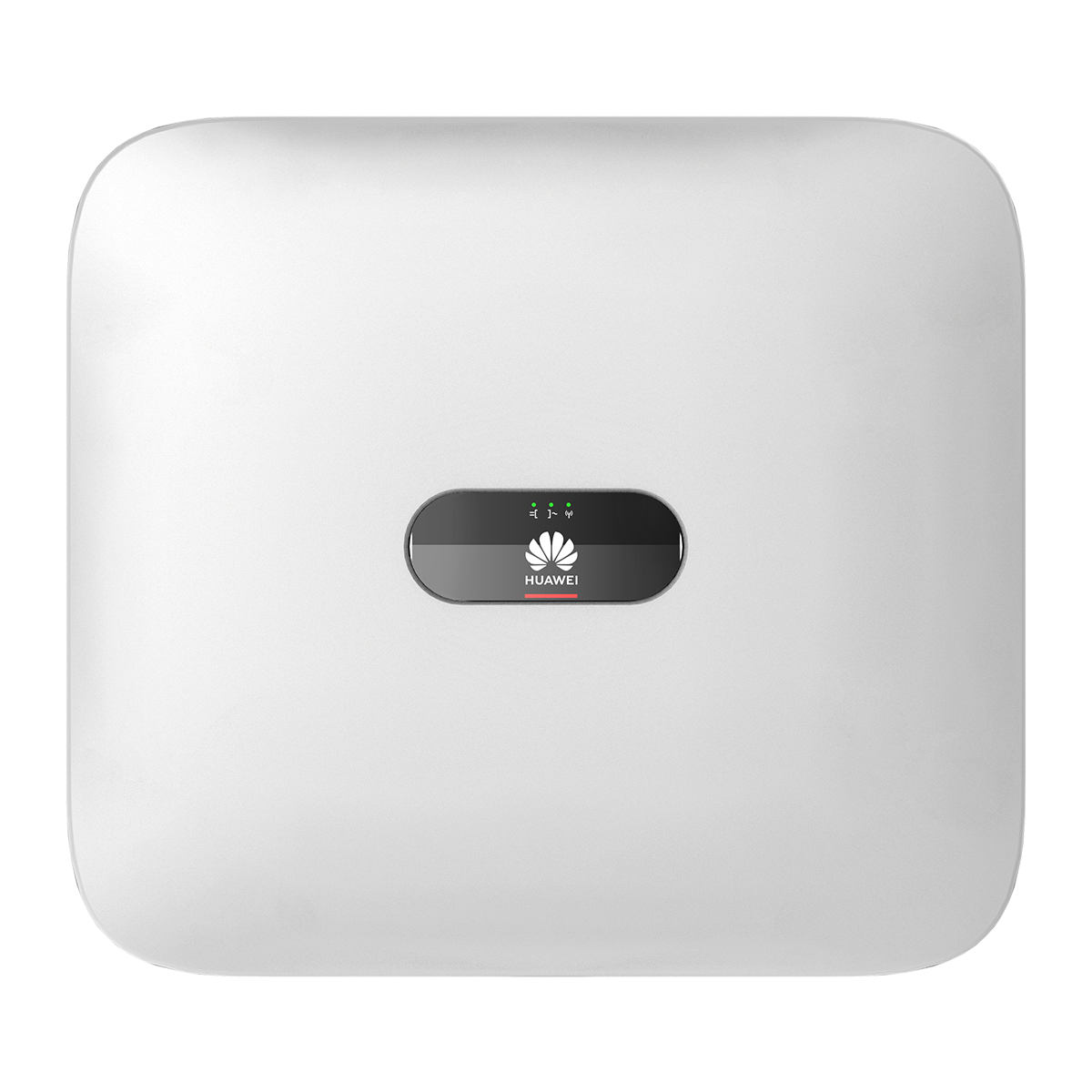

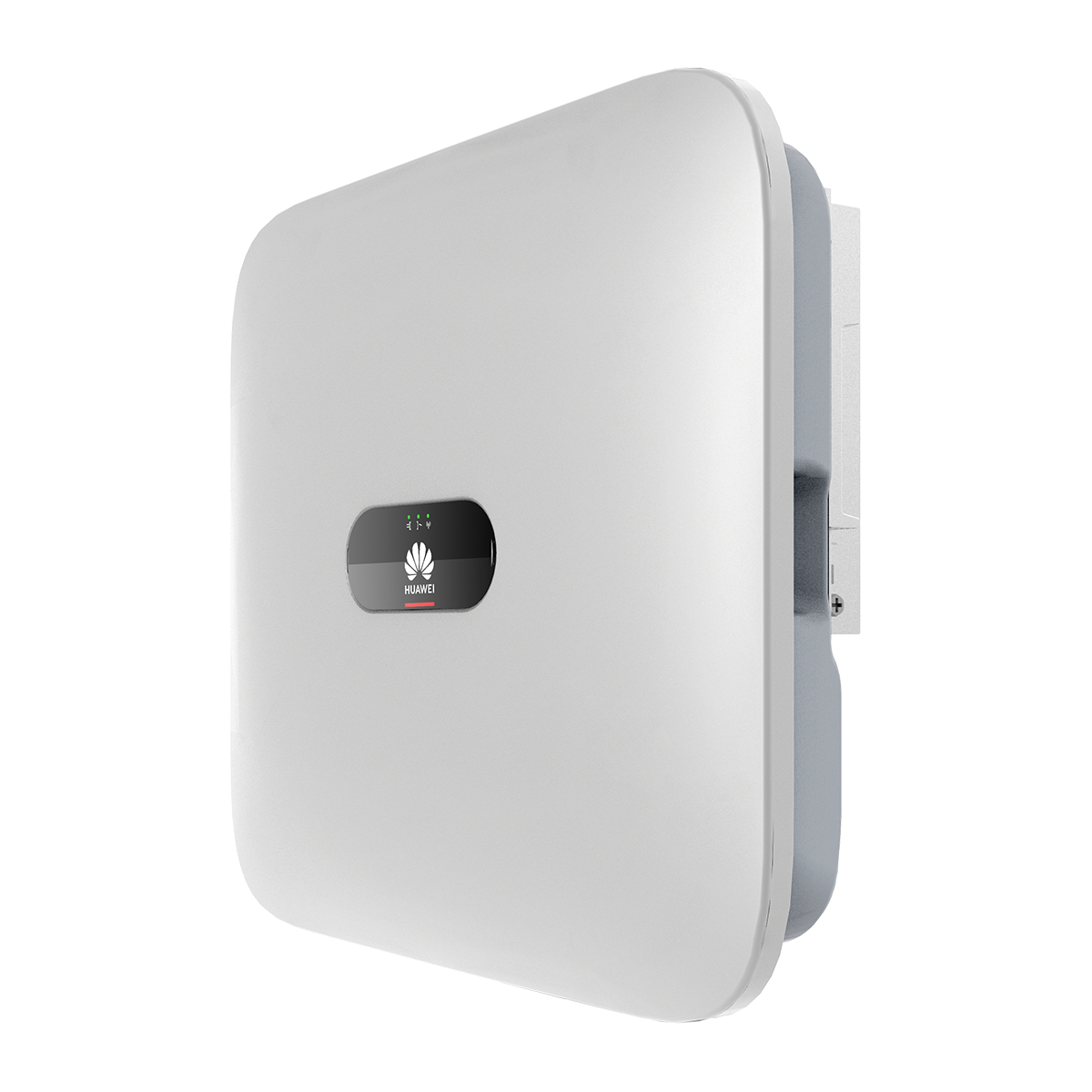

Huawei-SUN2000-5KTL-M1- 5KW hybrid inverter
Huawei inverters are really popular as they deliver in terms of performance, price and compatibility. The SUN2000 inverters are clearly one of the best inverters on the market right now. Huawei Technologies Co. was already started in 1987 and manufactures electronics in a variety of areas, within the solar cell industry they manufacture batteries and inverters for solar cells. Huawei is the largest supplier of inverters globally and supplies to over 170 countries.
Huawei-SUN2000-5KTL-M1 is made for installation in homes with 3-phase connection. Huawei's hybrid inverter SUN2000-5KTL-M1 is battery compatible with Huawei's Smart String Energy Storage System LUNA2000. Integrated plug & play battery connection as everything is prepared to use battery on the sun2000 model, no additional parts or other adjustments are required to connect battery.
The Huawei-SUN2000 has been developed with safety in focus with, for example, AI-driven active arc protection, so it protects the inverter against arcs and is integrated into the inverter and can, in combination with optimizers from Huawei, show the exact location of the arc. Both AC and DC surge protection Class II is integrated into the Sun2000 model inverters.
The Huawei-SUN2000-5KTL-M1 can be combined with the SUN2000-450W-P optimizer to get an optimized solar system but also for better monitoring via Huawei's Fusion solar app. By connecting the inverter to fusion solar, you can measure and see how much the plant produces. Together with the Huawei-SUN2000 up to the size 10 kw, the wifi module is included, otherwise it needs to be purchased separately.
Supplier guarantee: 10 years
Battery Compatible/ Hybrid: Yes
Max Power : 6000VA for 6.0, 8000VA for 8.0 and 10000VA for 10.0 Etc.
Number of phases : Three phases
Number of MPPT: 2 pcs
MPP volts min: 140.0 Volts
MPP volts max: 850.0 Volts
Number of inputs per MPPT: 1+1
DC connection: MC4
Size in mm L: 525 mm W: 470 mm H: 166 mm
Weight : 18 kg
